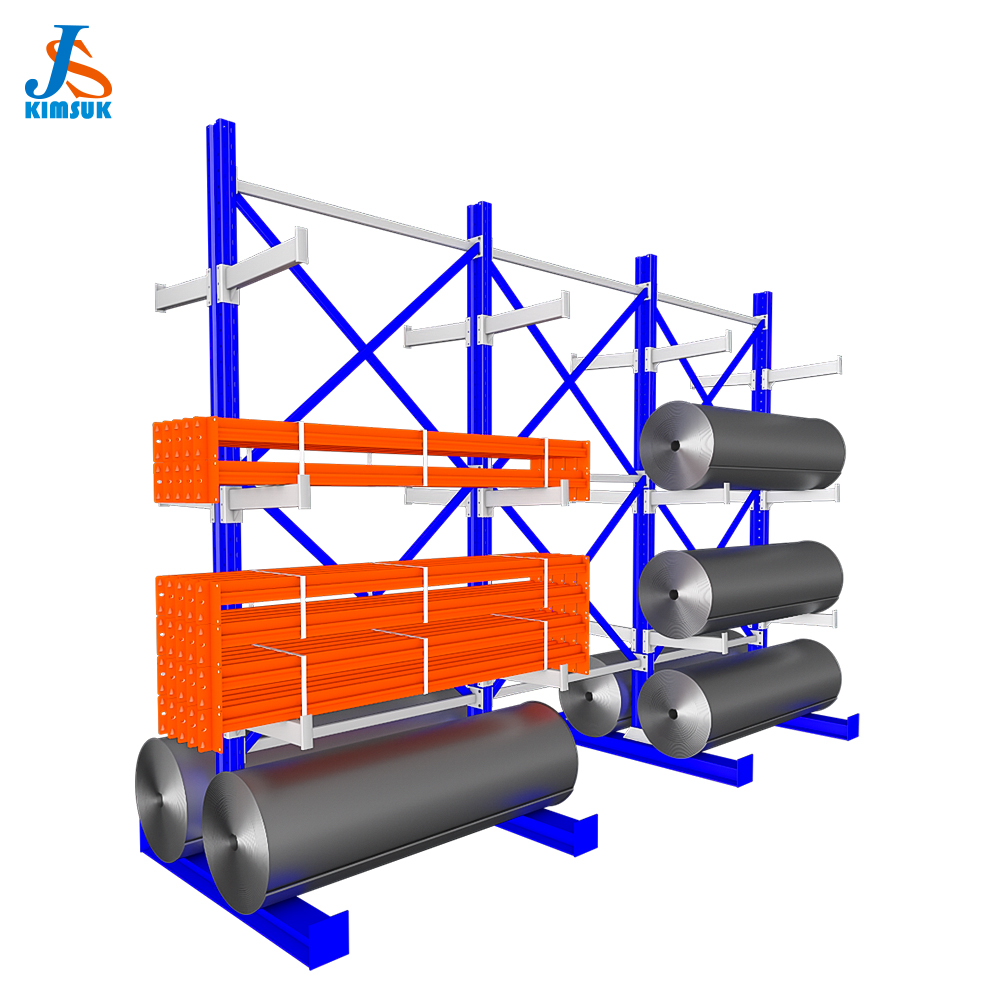

Rotating Reel Storage Cantilever Racking Storage Rack Heavy Duty Automatic Warehouse Storage Pallet Shuttle Racking

Product Specifications
Product Name	Heavy duty pallet rack
Size	L2300W1000H2550mm ( As your request )
Layer	2 ( As your request )
Load Capacity	1000KG (As your request )
Upright Specification	2550100090701.5mm
Beam Specification	230010045*1.2mm
Usage	Warehouse/Supermarket/Industry storage rack & shelf

⚡ Customized Service Available

Please tell us your required size and loading capacity per layer. We accept customized dimensions and load capacities. If needed, extra layers can be added to the shelf (Standard setup is 2 layers).

Model	Capacity / KG	Size (L * W * H) mm	Layer	Remark
JS-H01	1000KG	2300 * 1000 * 2550	2	Upright: 2550 * 1000 * 90 * 70 * 1.5mm Beam: 2300 * 100 * 45 * 1.2mm
JS-H02	1500KG	2300 * 1000 * 2550	2	Upright: 2550 * 1000 * 90 * 70 * 1.5mm Beam: 2300 * 100 * 45 * 1.5mm
JS-H03	2000KG	2300 * 1000 * 2550	2	Upright: 2550 * 1000 * 90 * 70 * 1.8mm Beam: 2300 * 120 * 45 * 1.5mm
JS-H04	3000KG	2300 * 1000 * 2550	2	Upright: 2550 * 1000 * 90 * 70 * 2.0mm Beam: 2300 * 140 * 45 * 1.5mm
JS-H05	4000KG	2300 * 1000 * 2550	2	Upright: 2550 * 1000 * 90 * 70 * 2.0mm Beam: 2300 * 160 * 45 * 1.5mm

Selective pallet rack or heavy pallet rack is a common racking system in use today. Pallet rack systems consist of steel uprights and beams to support some type of decking to store goods. These systems offer maximum flexibility because the strength, height, and length of the bays can be varied during installation to suit the stored material.

Key Strengths:

Adapt to a wide range of goods with 100% cargo picking.
Fully compatible with forklifts and other handling equipment.
Beams can be flexibly adjusted to suit different cargo heights.
Easy to disassemble and relocate as warehouse needs change.

Frequently Asked Questions

❓ What is the standard load capacity of these heavy duty pallet racks?

The standard configuration supports up to 1000KG per layer. However, customized models can support load capacities of 1500KG, 2000KG, 3000KG, and up to 4000KG per layer based on different upright and beam specifications.

❓ Can I customize the sizes and dimensions of the pallet rack?

Yes, we accept fully customized sizes. You can request customized length, width, and height configurations according to your specific warehouse space requirements.

❓ How many layers come standard, and can I add more?

The standard setup includes 2 layers. However, the system is highly flexible and extra layers can be easily added to maximize your vertical storage capacity.

❓ What are the recommended upright and beam specifications?

Specifications depend on the target load capacity. For example, a 1000KG capacity system uses a 2550*1000*90*70*1.5mm upright and 2300*100*45*1.2mm beam, while a 4000KG capacity system uses thicker 2.0mm uprights and larger 160*45mm beams.

❓ Are these racking systems easy to adjust or relocate?

Yes, selective pallet racks are highly flexible. The beams can be quickly adjusted to suit varying cargo heights, and the entire system is designed for straightforward disassembly and relocation.

❓ Is this racking system compatible with standard forklifts?

Absolutely. The system is designed to be fully compatible with standard forklifts and other warehouse material handling equipment, ensuring efficient 100% cargo picking.

Product Detail

Rotating Reel Storage Cantilever Racking Storage Rack Heavy Duty Automatic Warehouse Storage Pallet Shuttle Racking

Product Description
