| Parameters | Details |
|---|---|
| Product Name | Heavy duty pallet rack |
| Size | L2300*W1000*H2550mm (As your request) |
| Layer | 2 (As your request) |
| Load Capacity | 1000KG (As your request) |
| Upright Specification | 2550*1000*90*70*1.5mm |
| Beam Specification | 2300*100*45*1.2mm |
| Usage | Warehouse/Supermarket/Industry storage rack & shelf |
Please tell us the size and loading capacity per layer. We accept customized sizes and loading capacities. If you need, the shelf can add extra layers (Standard configuration is 2 layers).
| Model | Capacity / KG | Size (L*W*H) mm | Layer | Remark |
|---|---|---|---|---|
| JS-H01 | 1000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*1.5mm Beam: 2300*100*45*1.2mm |
| JS-H02 | 1500KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*1.5mm Beam: 2300*100*45*1.5mm |
| JS-H03 | 2000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*1.8mm Beam: 2300*120*45*1.5mm |
| JS-H04 | 300KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*2.0mm Beam: 2300*140*45*1.5mm |
| JS-H05 | 4000KG | 2300*1000*2550 | 2 | Upright: 2550*1000*90*70*2.0mm Beam: 2300*160*45*1.5mm |
Selective pallet rack or heavy pallet rack is a common racking system in use today. Pallet rack systems consist of steel uprights and beams to support some type of decking to store goods. These systems offer maximum flexibility because the strength, height, and length of the bays can be varied during installation to suit the stored material.
A heavy duty pallet rack (or selective pallet rack) is a common industrial racking system consisting of steel uprights and beams. It is designed to support various types of decking to store goods securely and offers maximum flexibility as the configuration can be adjusted during installation.
Yes, we accept customized sizes and load capacities. You can specify the desired frame measurements and load capacity per layer to suit your exact storage requirements.
Key benefits include 100% cargo picking access, compatibility with standard forklifts and handling equipment, height-adjustable beams to fit varied cargo sizes, and a design that is easy to disassemble, adjust, or relocate.
The standard layout includes 2 layers, but extra layers can be easily added to the shelf system according to your operational needs.
Upright specifications typically start from 2550*1000*90*70*1.5mm up to 2.0mm thickness, while beam specifications range from 2300*100*45*1.2mm up to 160*45*1.5mm depending on the capacity requirements (up to 4000KG).

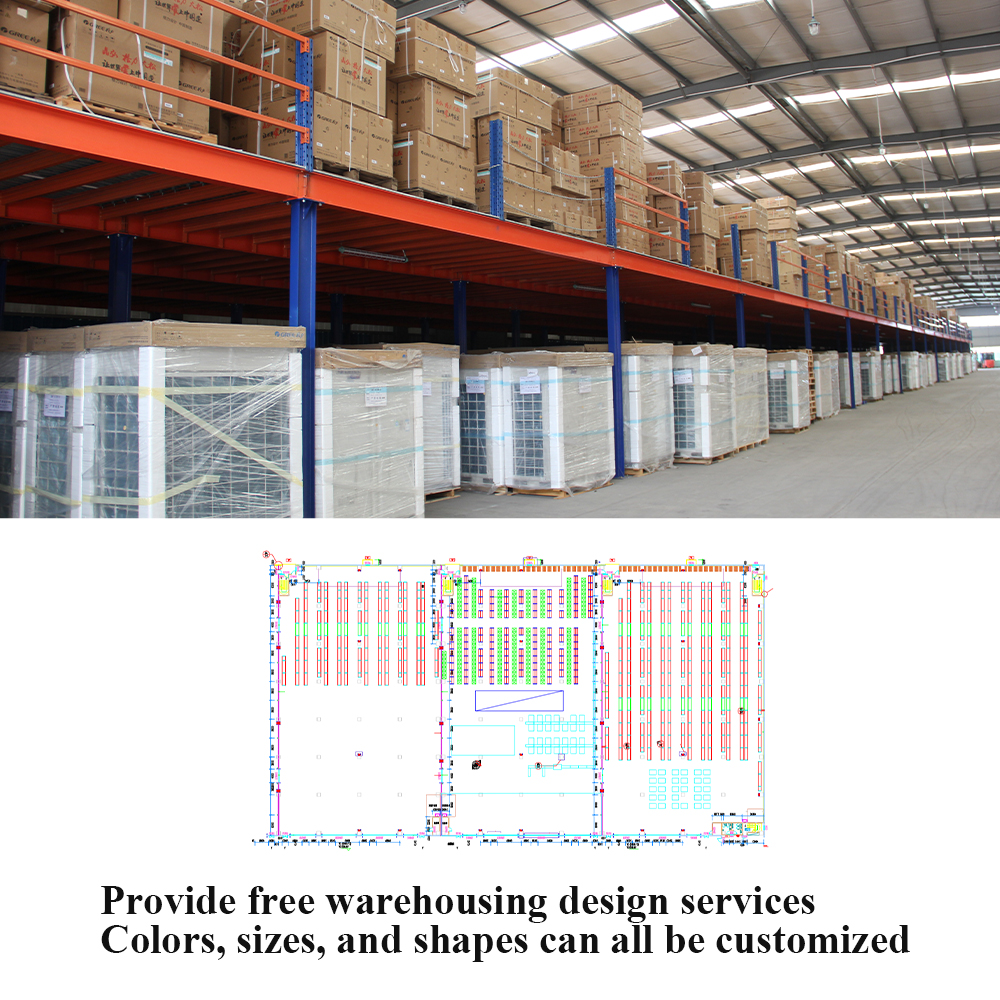

These racking systems are highly versatile and primarily utilized for industrial storage, supermarket bulk displays, and warehouse logistics operations.
