Kimsuk Racking
1 / 5
| Model | Capacity (KG/Layer) | Size (L*W*H) mm | Material Thickness |
|---|---|---|---|
| JS-L1242 | 100KG | 1200*400*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1252 | 100KG | 1200*500*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1542 | 100KG | 1500*400*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1552 | 100KG | 1500*500*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-M1062 | 200KG | 1075*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1542 | 200KG | 1500*400*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1242 | 200KG | 1200*400*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1262 | 200KG | 1200*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1552 | 200KG | 1500*500*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M2042 | 200KG | 2000*400*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1562 | 200KG | 1500*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M2052 | 200KG | 2000*500*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M2062 | 200KG | 2000*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1562L | 300KG | 1500*600*2000 | Column/Beam 0.9mm; Layer 0.4mm |
| JS-M2062L | 300KG | 2000*600*2000 | Column/Beam 0.9mm; Layer 0.4mm |
| JS-H2062 | 500KG | 2000*600*2000 | Column/Beam 1.1mm; Layer 0.5mm |
4 Layers
Blue / Orange / Grey-white
Other sizes and colors can be customized based on the quantity of the order.
The load capacity varies by model, ranging from 100KG for light-duty configurations (JS-L series) up to 500KG per layer for heavy-duty setups (JS-H series). Please check the specifications table to match capacity and dimensions to your storage needs.
Yes. While our standard configurations include sizes listed in the chart and colors such as Blue, Orange, and Grey-white, customizations for specific sizes and custom colors are available depending on your order quantity.
Material thickness varies depending on the load capacity. For the light-duty 100KG model, the column/beam thickness is 0.6mm and layer is 0.3mm. For the heavy-duty 500KG model, the column/beam thickness increases to 1.1mm with a 0.5mm layer thickness to ensure stability and durability.

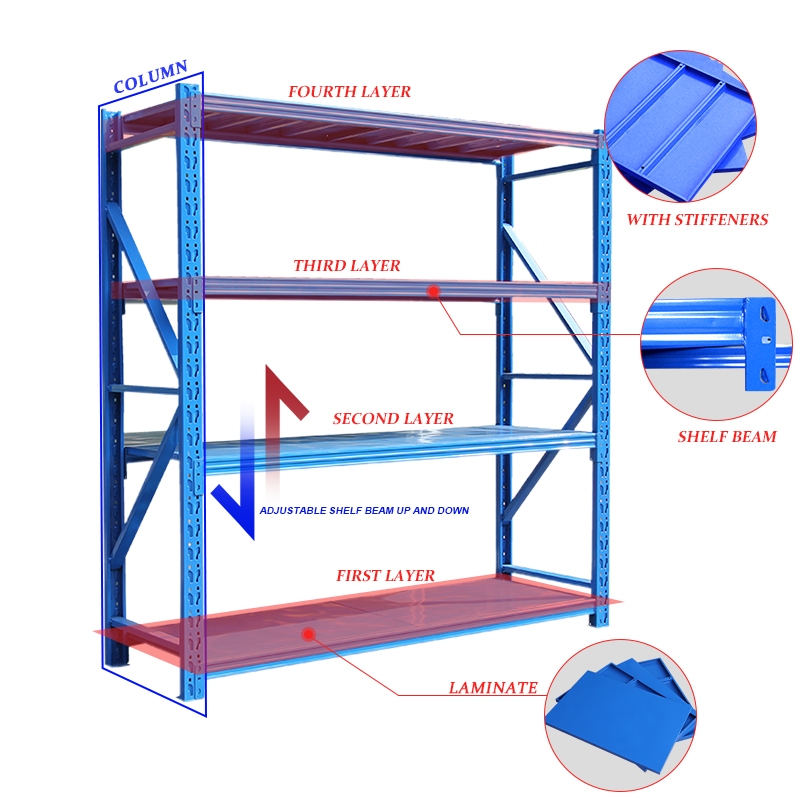

All models come standard with 4 layers. The design allows you to adjust the spacing between layers to accommodate items of varying sizes, ensuring efficient warehouse or workspace storage management.
Yes. The storage racks feature a boltless assembly design, allowing them to be set up quickly and adjusted without specialized heavy-duty tools. This makes them ideal for dynamically evolving warehouse layout requirements.
