Kimsuk Racking
1 / 5
| Specification | Details |
|---|---|

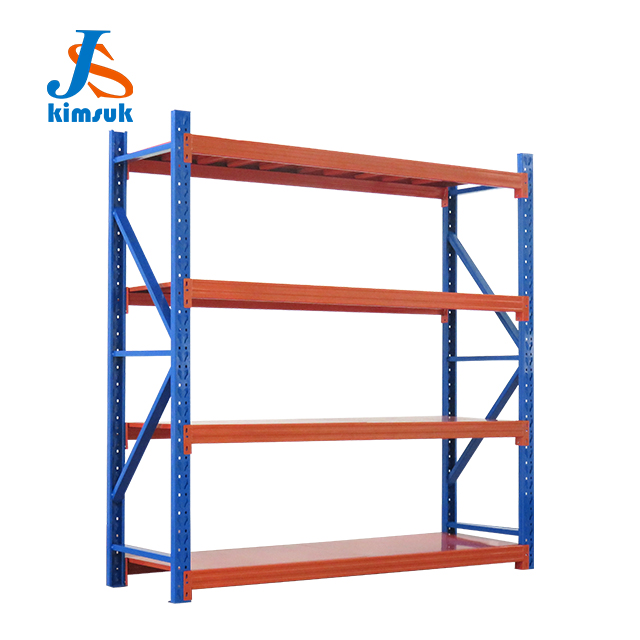

| Product Name | Diamond type heavy duty rack & shelf |
| Size | L2000*W600*H2000mm ( As your request ) |
| Layer | 4 ( As your request ) |
| Load Capacity | 300KG ( As your request ) |
| Upright Specification | 2000*600*60*50*1.2mm |
| Beam Specification | 1880*60*40*1.0mm |
| Steel Plate Specification | 940*560*0.5mm |
| Usage | Warehouse/Supermarket/Industry storage rack & shelf |
Please specify your required dimensions and load capacity per layer. We support fully customized sizing and weight requirements. If needed, additional shelf layers can be added (Standard configuration is 4 layers).
| Model | Capacity | Size ( L*W*H ) mm | Layers | Specification Remarks |
|---|---|---|---|---|
| JS-H22062 | 200KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.2mm Beam: 1880*60*40*1.0mm Steel Plate: 940*560*0.4mm |
| JS-H32062 | 300KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.2mm Beam: 1880*60*40*1.2mm Steel Plate: 940*560*0.5mm |
| JS-H52062 | 500KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.5mm Beam: 1880*80*40*1.2mm Plate: 940*560*0.6mm |
| JS-H82062 | 800KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.5mm Beam: 1880*80*40*1.5mm Plate: 940*560*0.7mm |
| JS-H12062 | 1000KG | 2000*600*2025 | 4 | Upright: 2000*600*60*50*1.5mm Beam: 1880*80*45*1.5mm Plate: 940*600*1.0mm |
A complete professional team of pre-sales and after-sales is on standby to assist you at any time.
For standard product orders, we promise delivery within 15 days. As a direct manufacturer, we guarantee punctual delivery timelines in accordance with official agreements.
We pay extreme attention to export packages. Plastic clips are fixed on the beams for surface protection. To prevent transit damage, uprights are wrapped completely with transparent protective film.
High standards of design and manufacturing enable us to provide an industry-leading 10-Year Warranty under standard usage conditions.
Yes, we are a direct manufacturer.
We combine excellent service, reliable 15-day delivery, custom export protective packaging, and a 10-year quality warranty on our products.
Standard products are typically delivered within 20 days. Custom configurations align with structural adjustments and tooling setup requirements.
We accept T/T, L/C, and Western Union payments.
Yes. We keep you updated by sending status reports and detailed photos at different production stages of your order.
Yes, we can send sections of samples for your reference via express delivery services.
