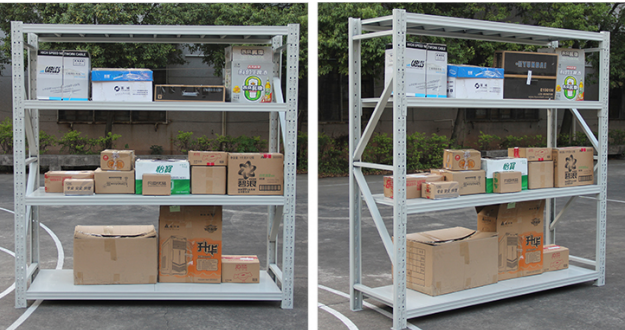

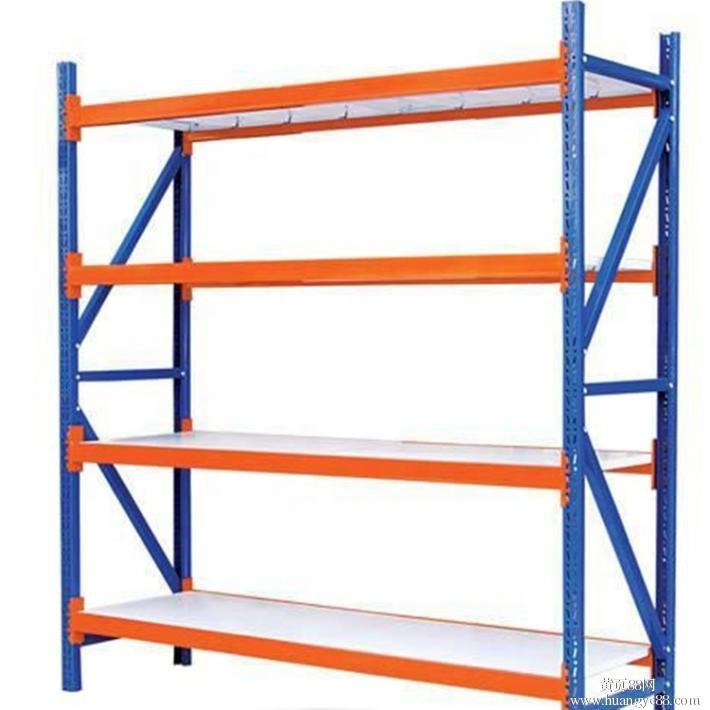

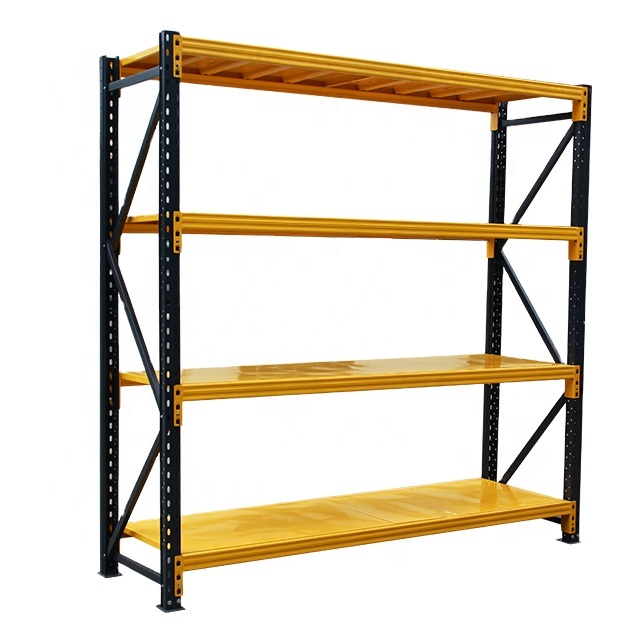

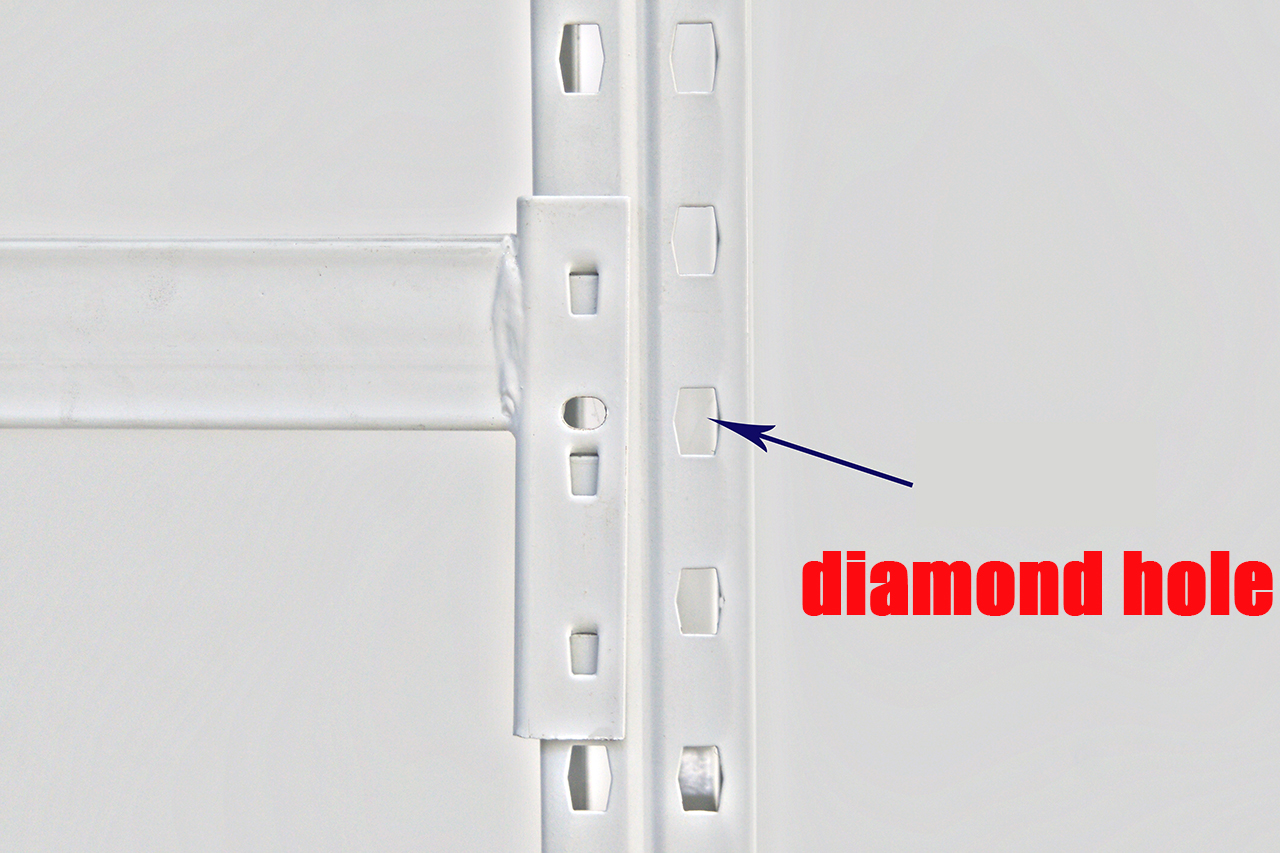

| Product Name | Diamond type heavy duty rack & shelf |

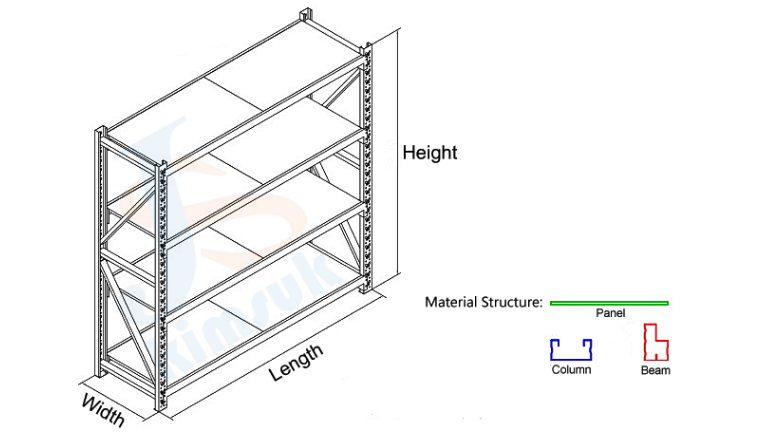

| Size | L2000*W600*H2000mm (As your request) |
| Layer | 4 (As your request) |
| Load Capacity | 300KG (As your request) |

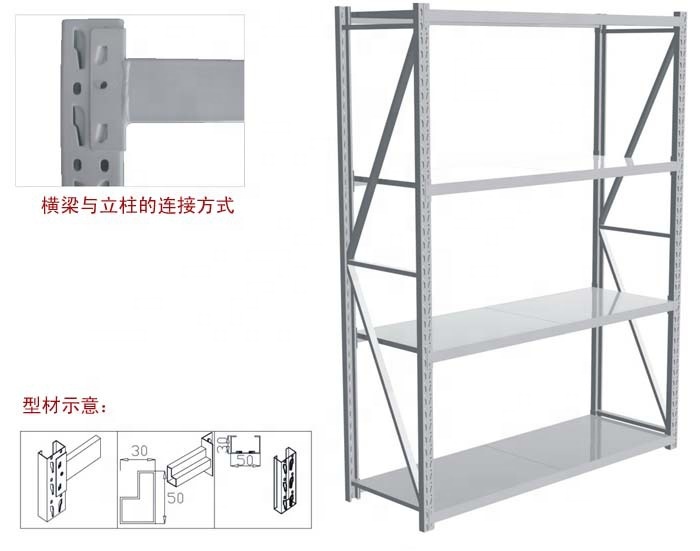

| Upright Specification | 2000*600*60*50*1.2mm |
| Beam Specification | 1880*60*40*1.0mm |
| Steel Plate Specification | 940*560*0.5mm |

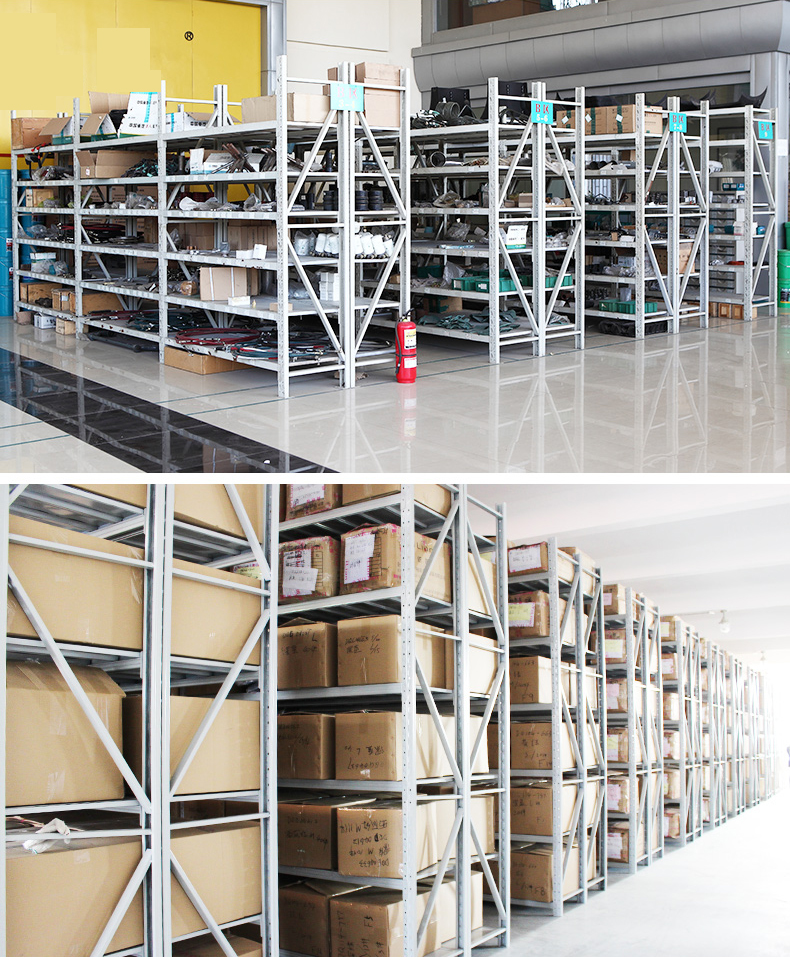

| Usage | Warehouse/Supermarket/Industry storage rack & shelf |
Please inform us of your required size and loading capacity per layer. We accept customized dimensions and load capacities. If required, extra layers can be added to the shelf (Standard configuration is 4 layers).
| Model | Capacity/KG | Size( L*W*H )mm | Layer | Remark |
|---|---|---|---|---|
| JS-H22062 | 200KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.2mm Beam: 1880*60*40*1.0mm Steel Plate: 940*560*0.4mm |
| JS-H32062 | 300KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.2mm Beam: 1880*60*40*1.2mm Steel Plate: 940*560*0.5mm |
| JS-H52062 | 500KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.5mm Beam: 1880*80*40*1.2mm Plate: 940*560*0.6mm |
| JS-H82062 | 800KG | 2000*600*2000 | 4 | Upright: 2000*600*60*50*1.5mm Beam: 1880*80*40*1.5mm Plate: 940*560*0.7mm |
| JS-H12062 | 1000KG | 2000*600*2025 | 4 | Upright: 2000*600*60*50*1.5mm Beam: 1880*80*45*1.5mm Plate: 940*600*1.0mm |

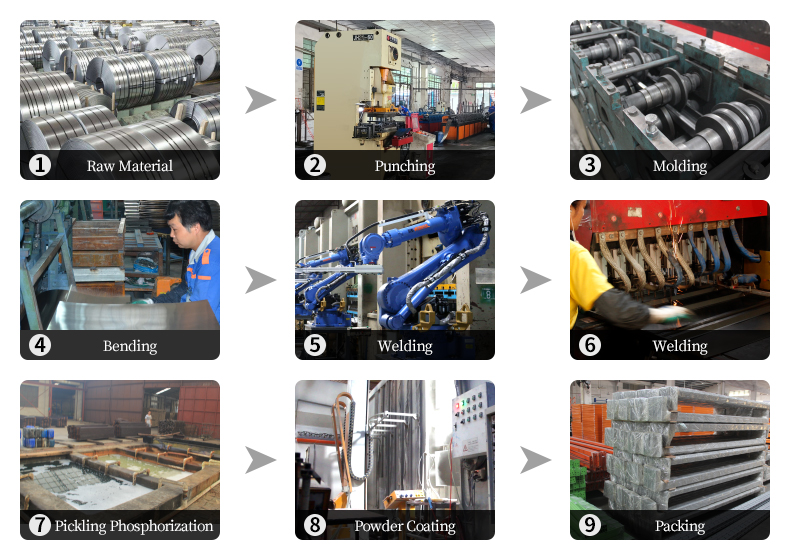

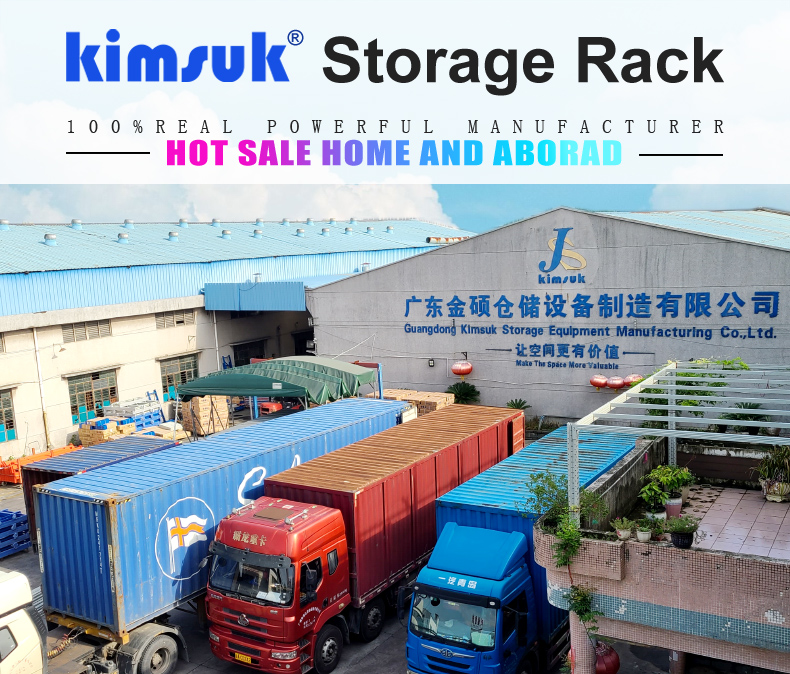

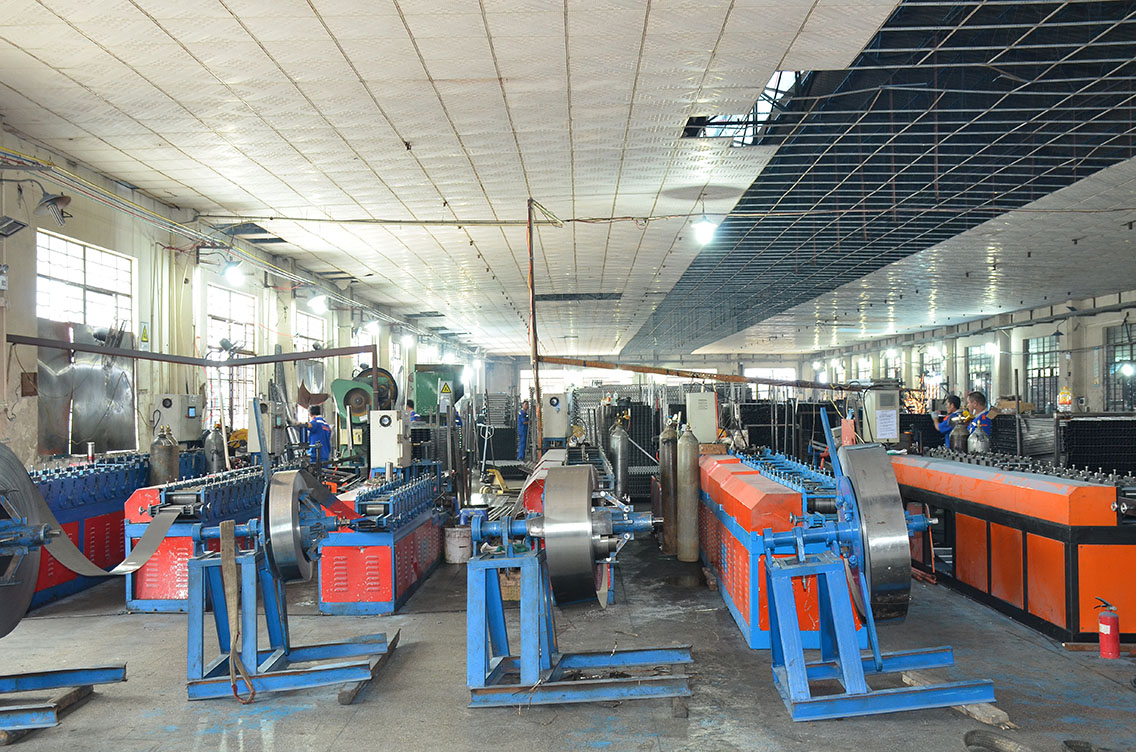

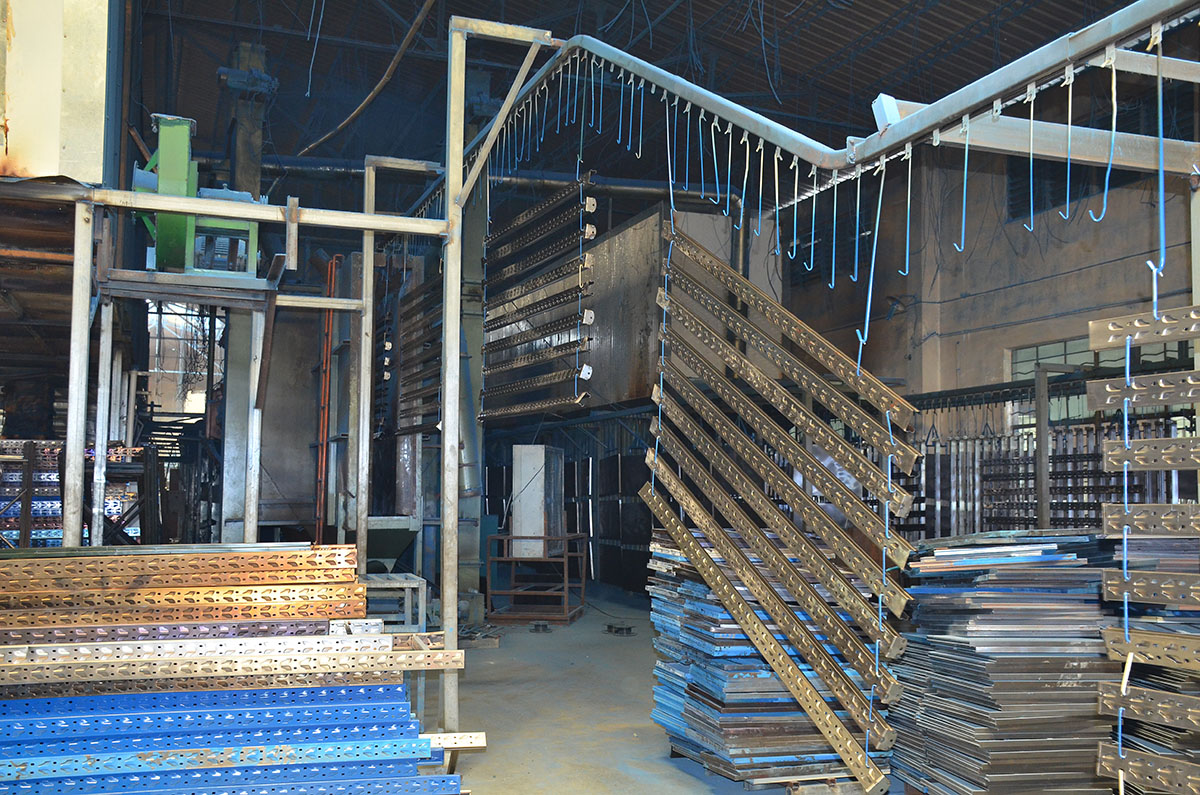

Founded in 2001, we now have two large factories in Southern China. We are a professional storage rack & shelf manufacturer. After years of development, we have become a one-stop service enterprise providing R&D, design, production, sales, and installation.
We offer a complete professional pre-sales and after-sales support team standing by to handle all inquiries efficiently.
For standard product orders, we promise delivery within 15 days, strictly adhering to formal contract timelines.

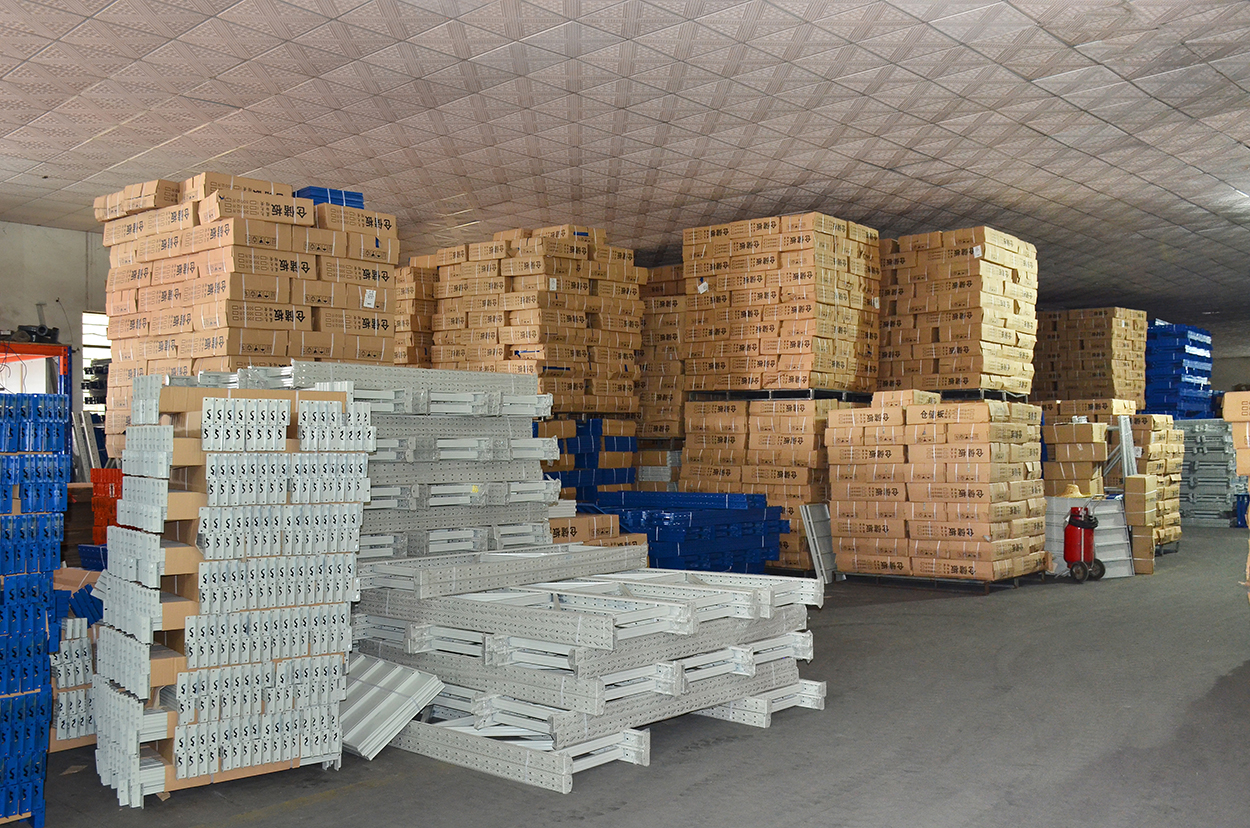

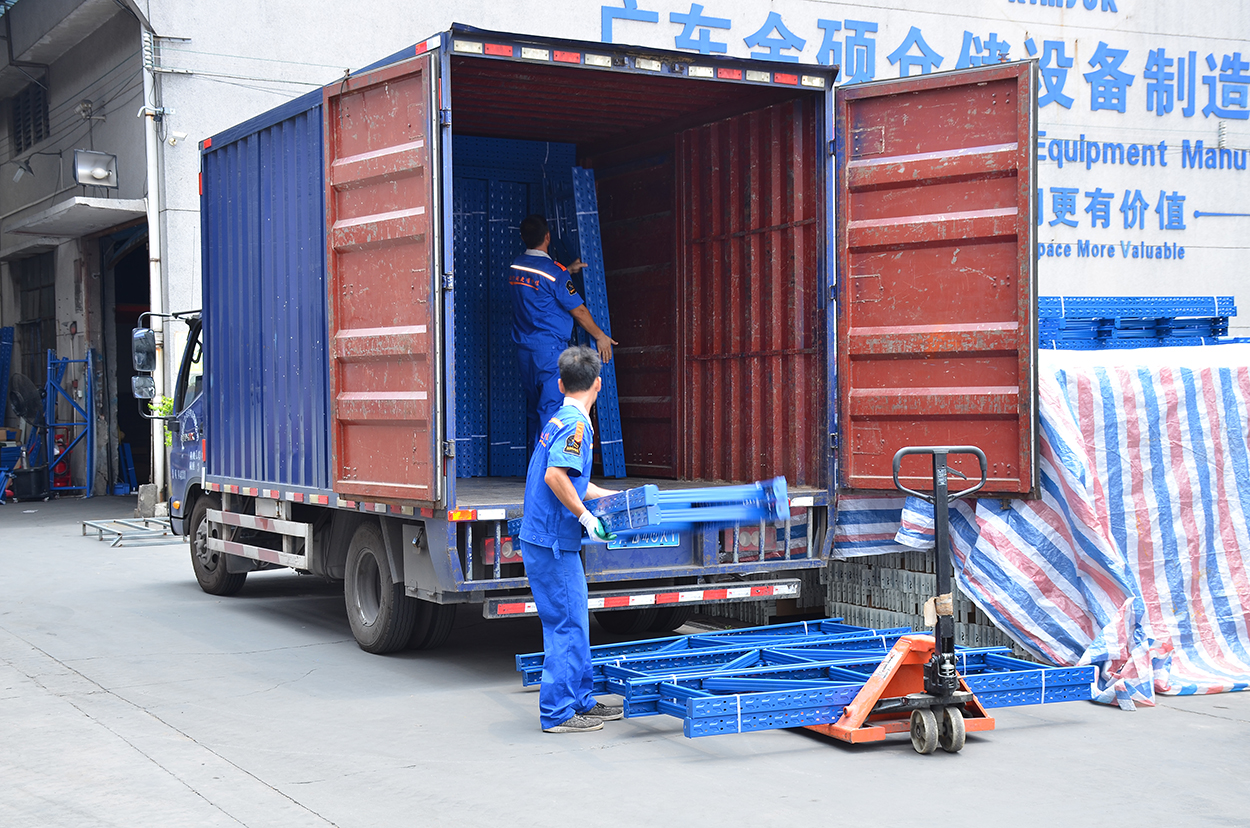

We use plastic clips on the beams for surface protection and wrap uprights in transparent plastic film to prevent damage during transit.
Built to high design and manufacturing standards, we provide a 10-Year Warranty for regular usage.
