Explore our industrial-grade storage racks designed to fit diverse warehousing formats, certified for high load capacity and seismic resilience.

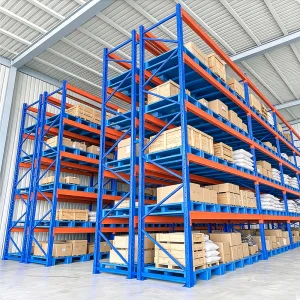

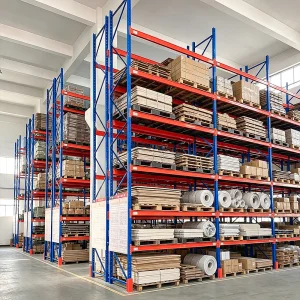

In modern industrial logistics, warehouse spacing efficiency and safety are no longer secondary operational metrics—they are primary drivers of global supply chain throughput. Selective racking systems stand as the most versatile, high-accessibility architecture in material handling. As warehouses expand vertically to optimize physical footprints, structural integrity under high load capacities has become paramount.
CE Certification under standard EN 15512 and the guidelines of the Federation Europeenne de la Manutention (FEM) provides structural verification that these steel systems can absorb massive static and dynamic forces without buckling. Non-compliant pallet systems present immense liability hazards, risking catastrophic structural failure, employee injury, and costly inventory destruction.
Across North America, Western Europe, and Asia-Pacific, third-party logistics (3PL) providers, cold chain hubs, and automated distribution centers are standardizing on certified racking designs to guarantee structural health, reduce insurance liabilities, and ensure seamless integration with conventional forklifts, reach trucks, and automated guided vehicles (AGVs).
| Parametric Attribute | Standard Specifications (Kimsuk Industrial) |
|---|---|
| Steel Grades | High-tensile Q235B & Q355B (equivalent to EN S235JR & S355JR) |
| Profile Thickness | Uprights: 1.8mm – 3.0mm; Beams: 1.5mm – 2.0mm |
| Load Capacity | Up to 4,500 kg per bay level (custom engineered up to 6,000 kg) |
| Surface Protection | AkzoNobel Epoxy Powder Coating / Hot-Dip Galvanization |
| Deflection Ratio | Designed below L/200 limit according to FEM 10.2.02 norms |
| Seismic Design | Seismic baseplates & heavy-duty anchor bolt configuration |
A global leader in structural engineering, heavy-duty racking manufacturing, and turnkey logistics solutions.
Spanning a state-of-the-art production facility of 38,000 square meters in Southern China, Dongguan Kimsuk Shelves Co., Ltd. combines advanced manufacturing infrastructure with high-precision structural engineering. We deliver reliable, compliant logistics infrastructures worldwide. With over 15 years of industry-specific engineering experience and 8+ years of global direct export capability, our systems undergo rigorous testing to ensure unmatched load-bearing safety.
Our quality assurance framework integrates ISO 9001:2015 Quality Management Systems, CE Standard Compliance, and independent third-party loading verification. Leveraging advanced CAD/3D BIM software and Finite Element Analysis (FEA) modeling, Kimsuk engineers custom rack arrays capable of withstanding high seismic zones and heavy operational wear-and-tear.
Our quality assurance relies on strict Non-destructive Ultrasonic Testing, Automated Ultrasonic Weld Flaw Detection, coating thickness measurements, and static/dynamic structural loading verification.
Utilizing high-end engineering platforms, our 18 structural specialists provide seismic upgrades, customized beam heights, step-down profiles, and tailor-made layout structures matching high-capacity warehouse builds.
Operating as a direct manufacturing source with over 850 upstream and downstream supply partners, we provide competitive trade structures, custom colors, and end-to-end logistics EPC solutions globally.

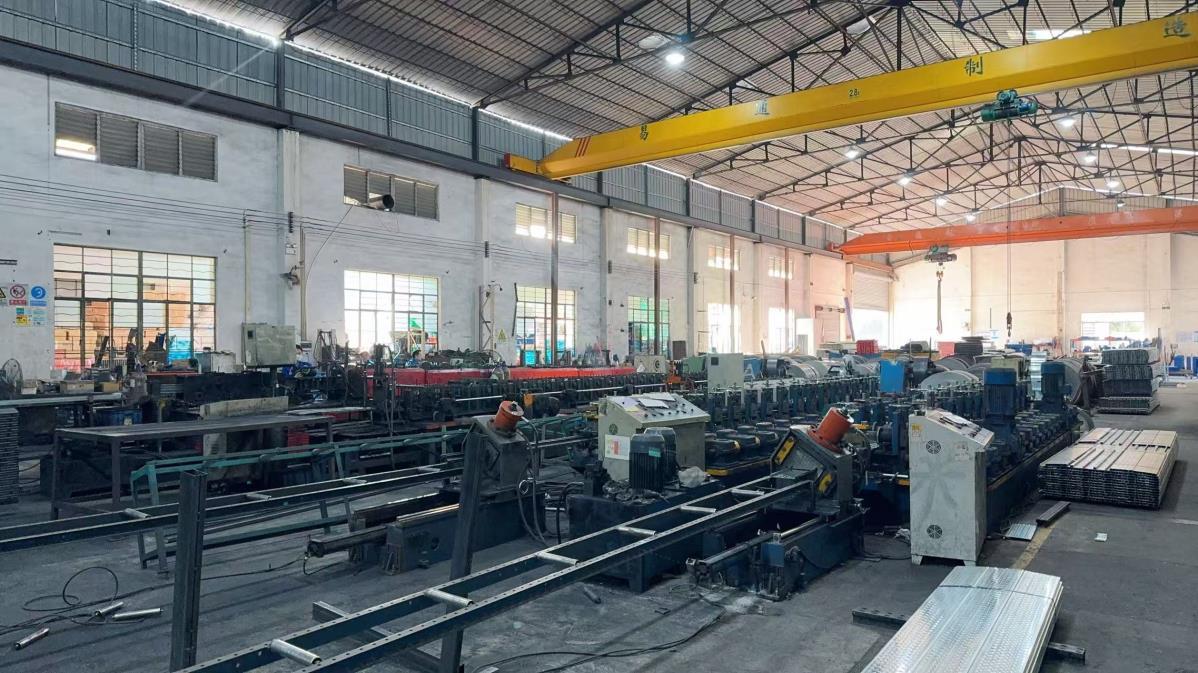

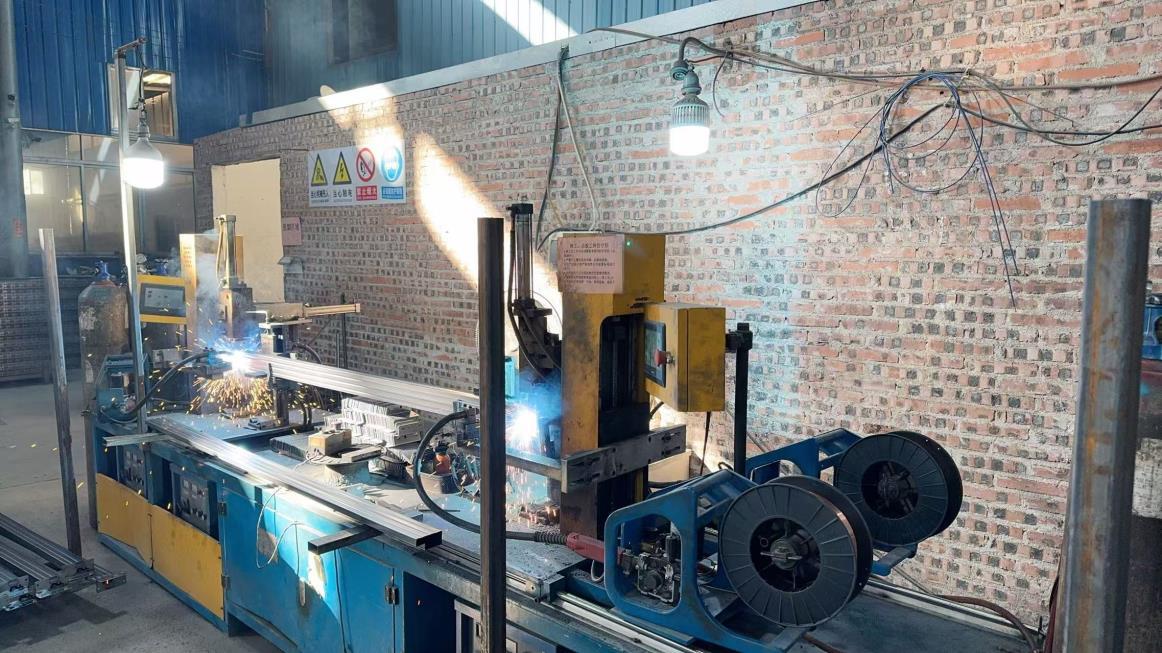

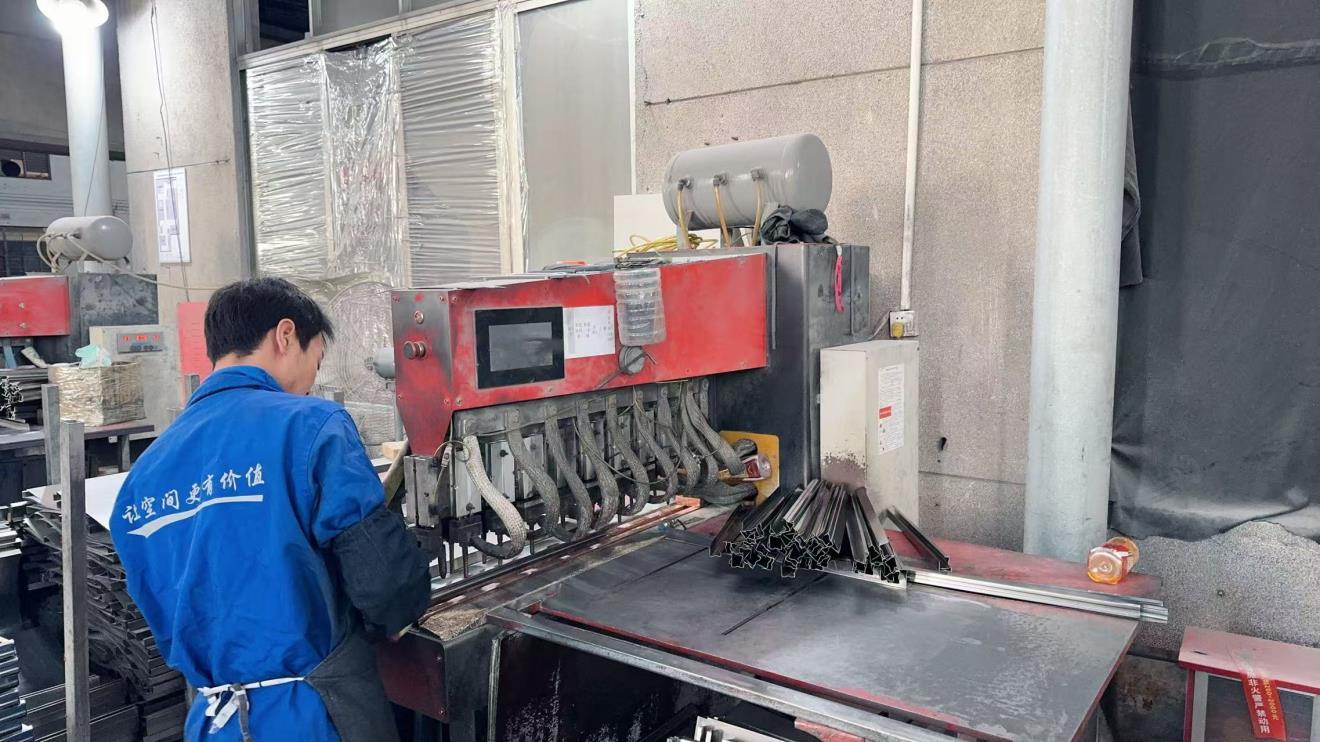

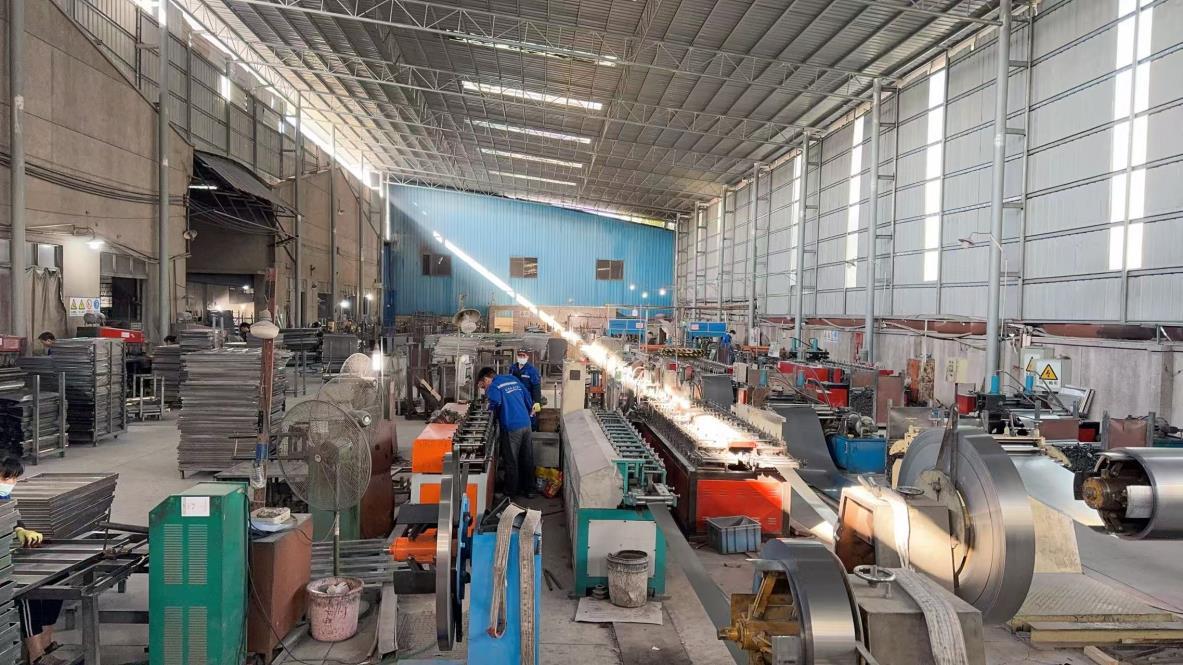

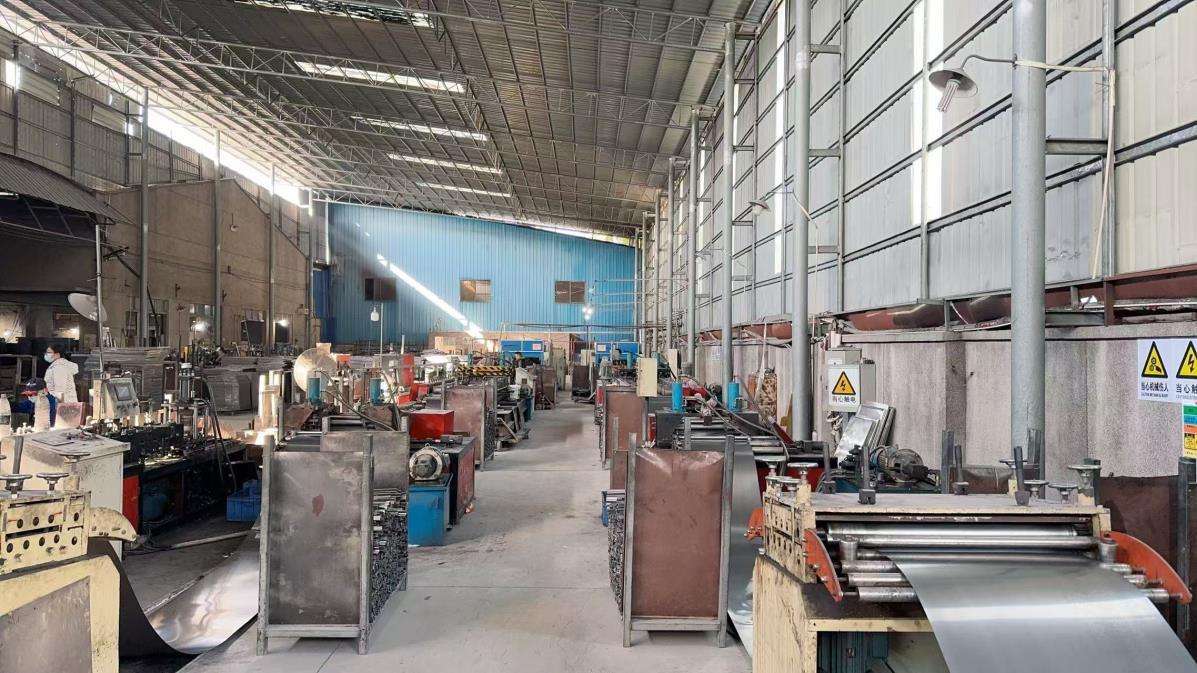

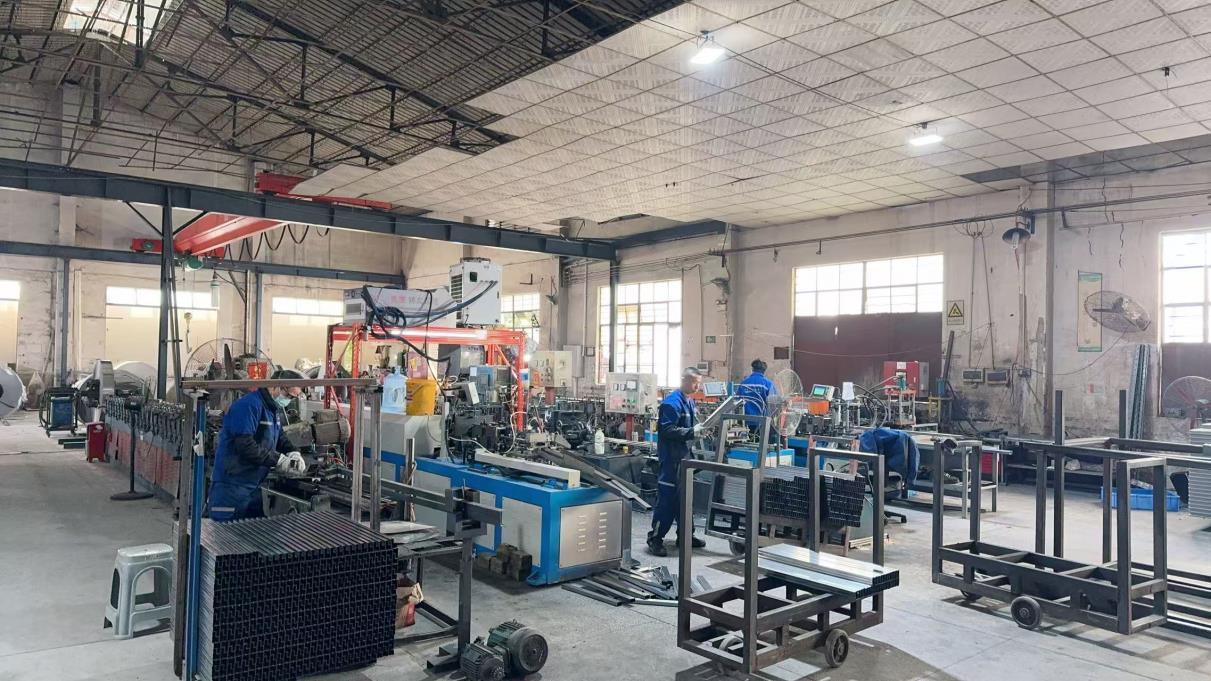

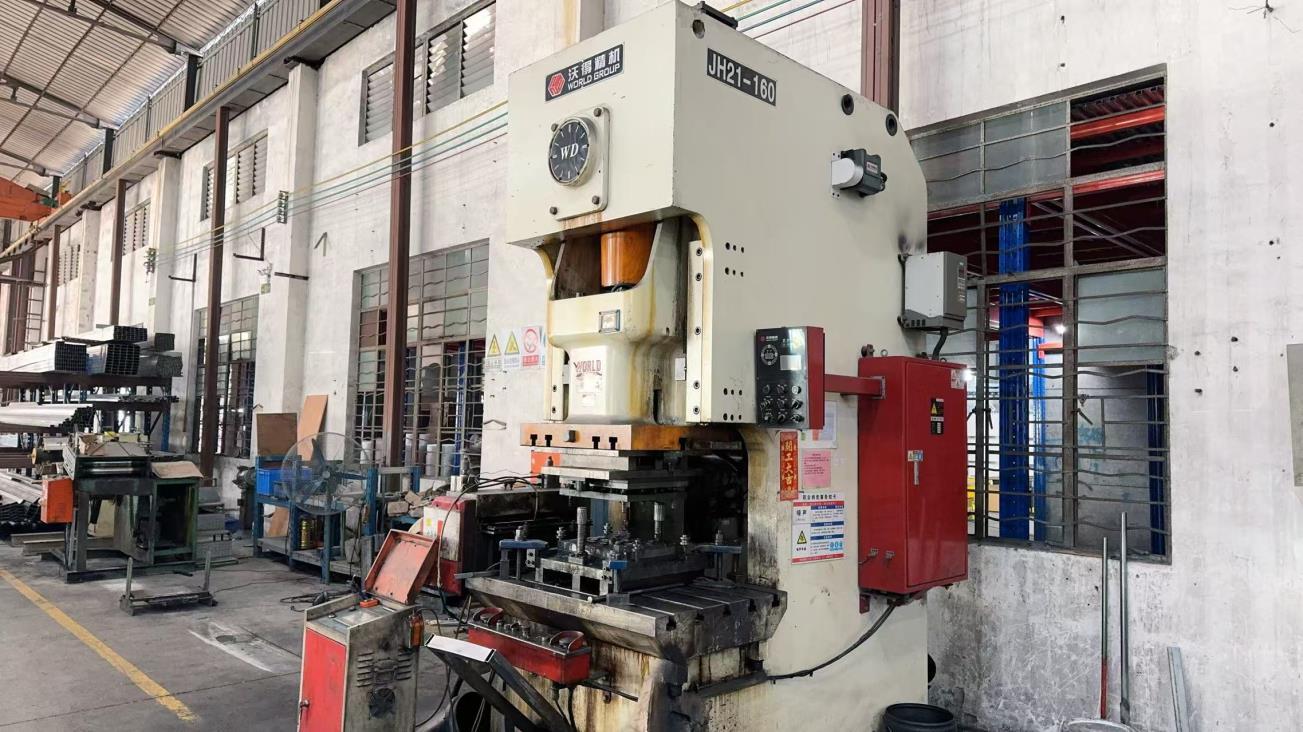

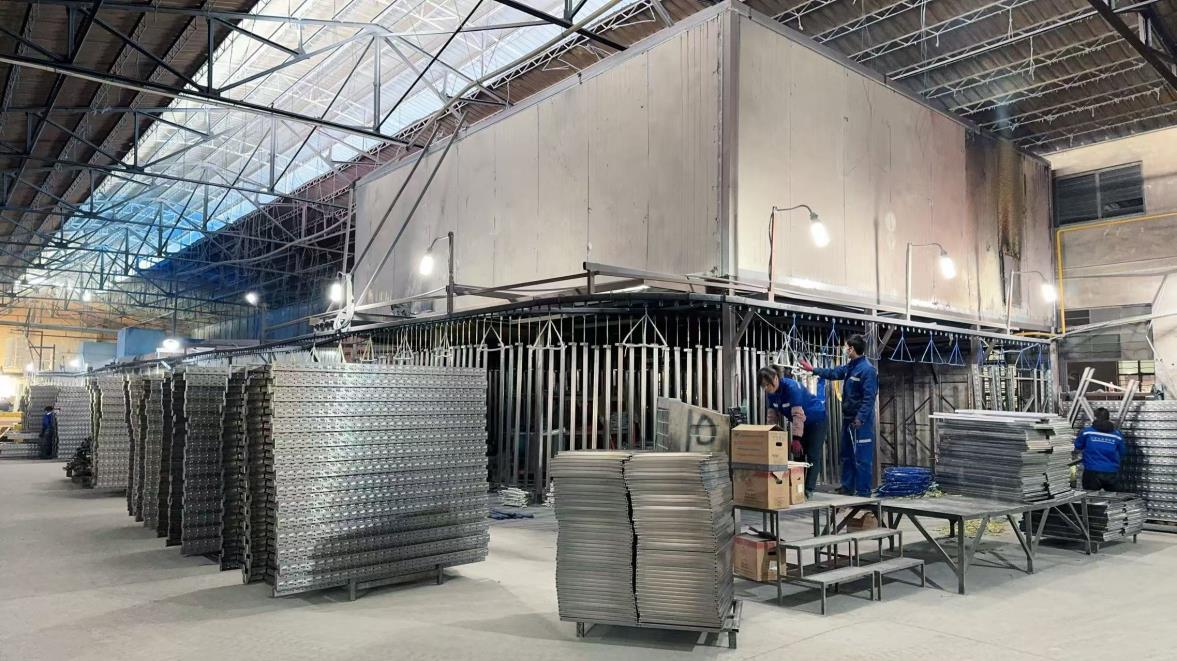

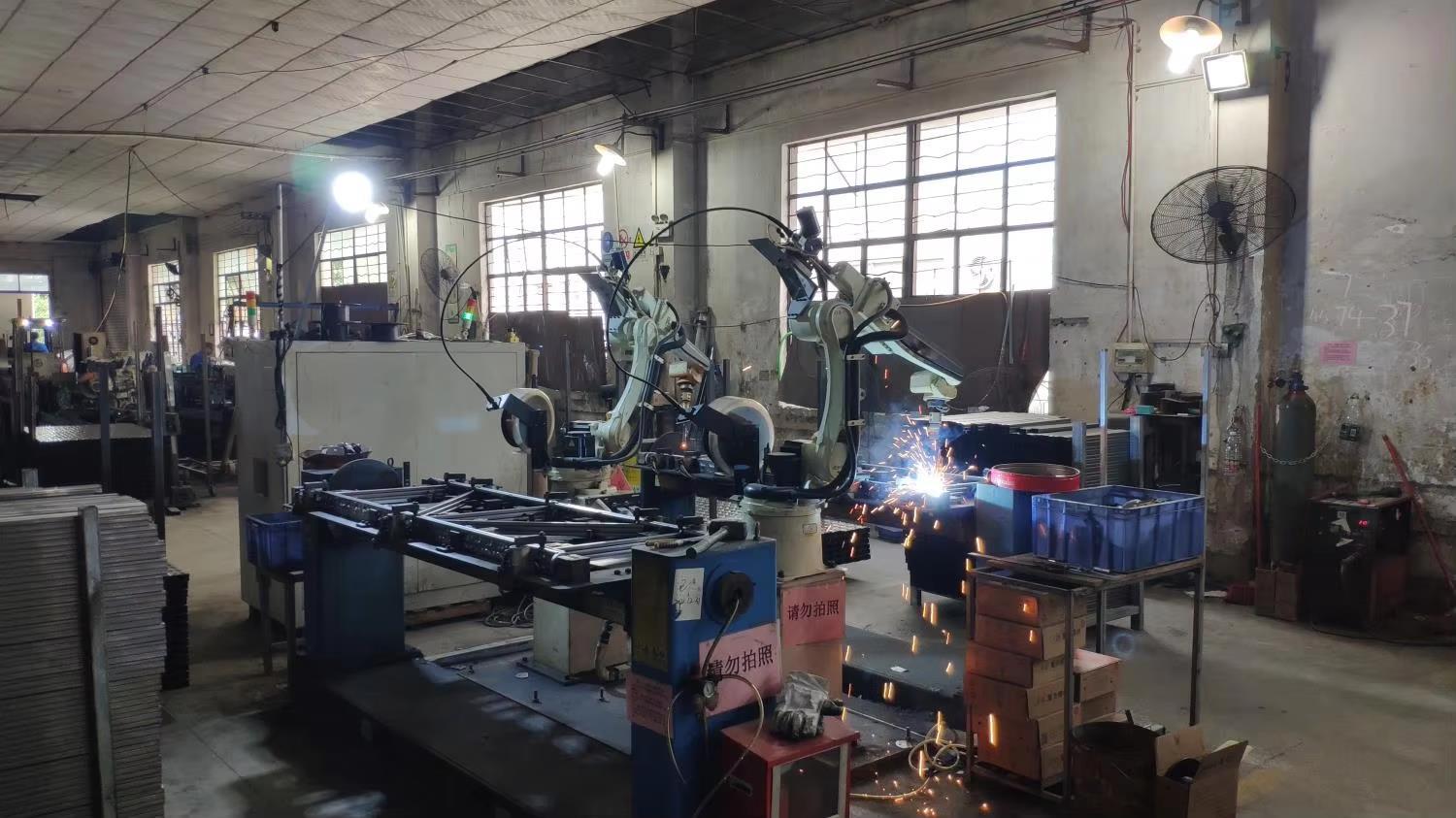

Observe how raw structural steel is processed through automated cold roll-forming, robotic welding, and automated powder coating to ensure safety and precision.
A deep dive into structural calculations, load dynamics, and mechanical optimizations defining high-density industrial systems.
Every selective racking system is subjected to a state of complex mechanical stress under load. Our design criteria account for key structural behaviors to prevent structural failures:
All cold-formed uprights feature continuous, high-precision punching profiles. The step beams are formulated with horizontal and diagonal bracing to optimize torsional stiffness and prevent rotational twisting.
Engineered storage solutions optimized for different high-density fulfillment challenges.
Under zero-degree environments, structural steel experiences drop-temperatures that can induce brittle fractures. Kimsuk's cold storage selective racking utilizes impact-resistant Q355B steel, coupled with high-durability hot-dip galvanization, preventing structural decay down to -40°C.
Third-Party Logistics operations require constant configuration adjustments. Our adjustable step beams feature a toolless 50mm or 75mm connection pitch, allowing operators to reorganize shelf configurations rapidly to adapt to varying unit loads and pallet heights.
High-volume pick arrays integrate heavy-duty racking with wire mesh decking, selective picking shelves, and safety barriers. Our racks are designed to integrate with picking systems, ensuring stability and safety for manual stockers and warehouse workers.
Industry-standard answers to structural design, engineering compliance, and ordering parameters.

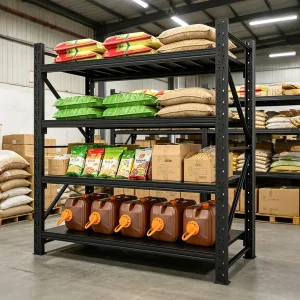

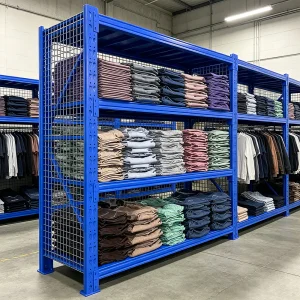

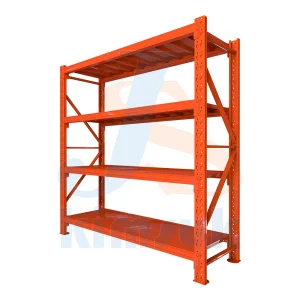

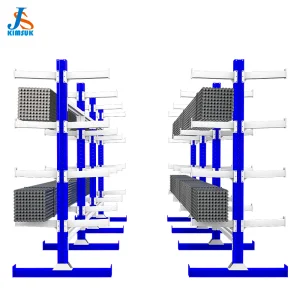

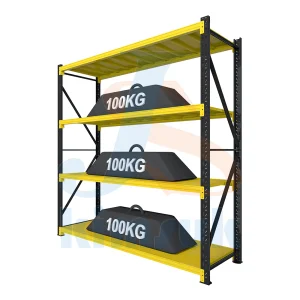

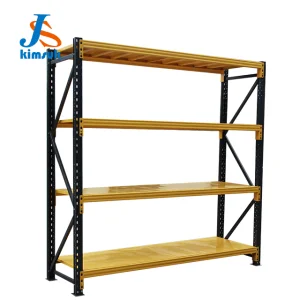

Complete your warehouse configuration with our specialized racking designs, heavy-duty shelving, and durable steel storage units.
